This voltage regulator for automotive use was found in a Radio Electronics from the 80s. The Q3 power transistor must have a heatsink and the diagram between the Q3 collector and the Q2 collector was missing.
| Clique na imagem para ampliar |

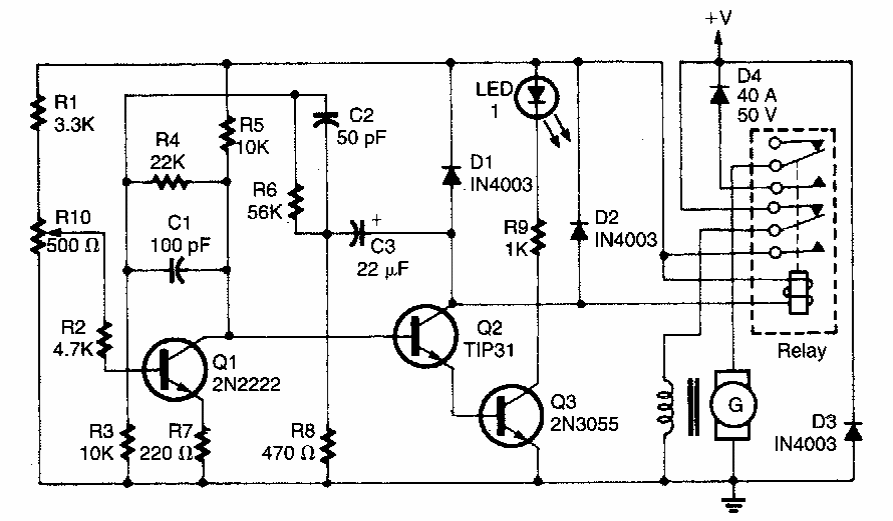

Regulator for dynamo (CB7122E)
- Details
- Written by: Newton C. Braga
