RIAA Compensated Amplifier (CB7334E)

Details
Written by: Newton C. Braga

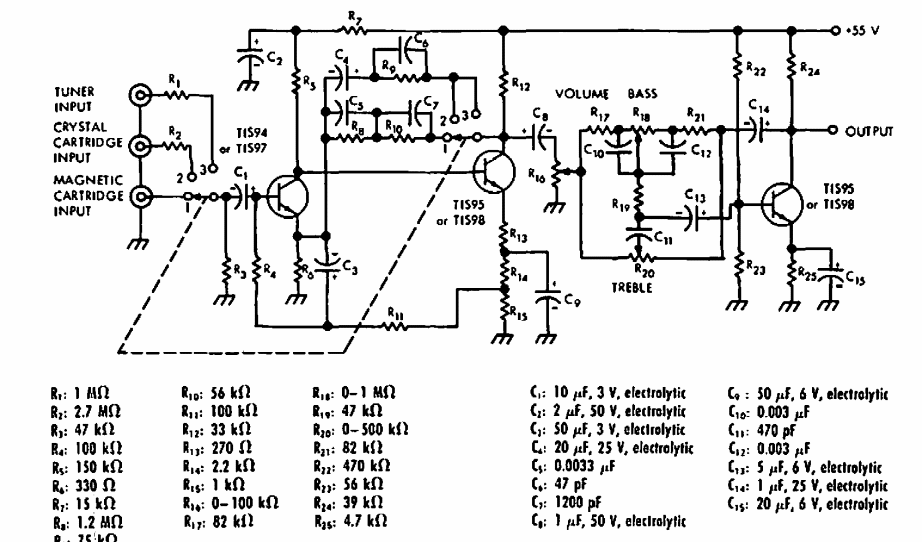

     This circuit was found in Texas Instruments documentation from 1968. The transistors are from that time, admitting modern equivalents. The response ranges is from 20 to 20 000 Hz.




| Clique na imagem para ampliar |
