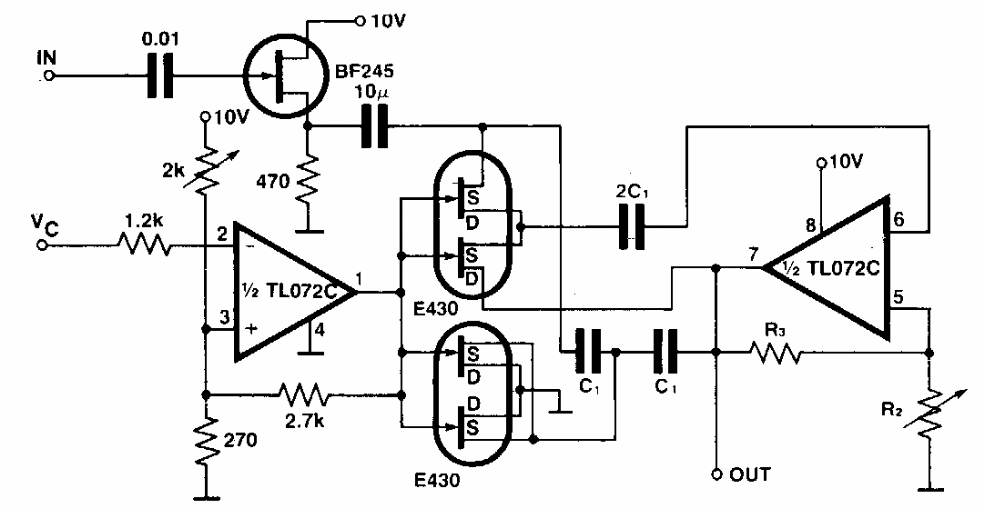

Programmable Twin T Band Pass Filter (CB6244E)

Details
Written by: Newton C. Braga



     This circuit was found in an American 1980s documentation. Dual FETs can be replaced by single equivalents. Control voltage ranges from 0 to 1 V.




| Clique na imagem para ampliar |
