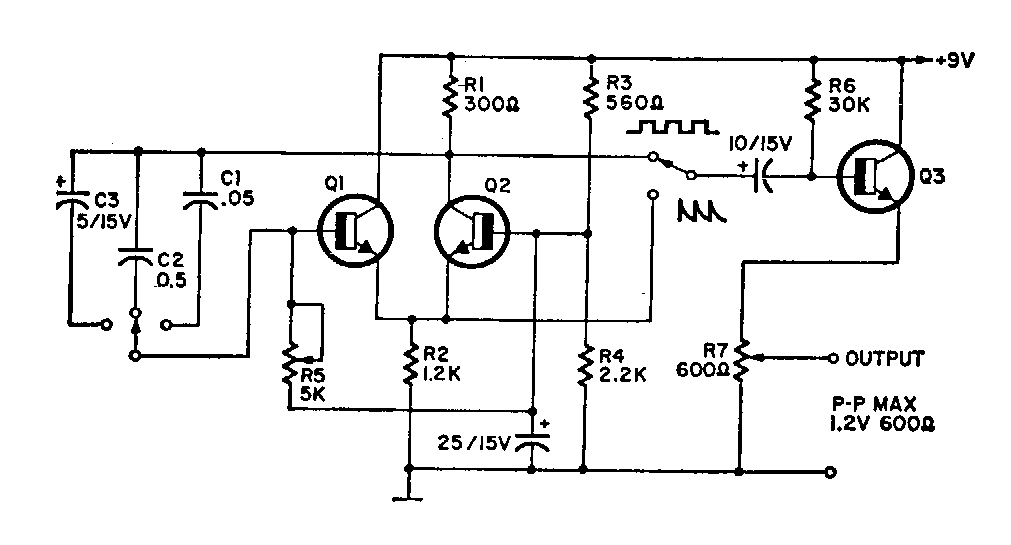

This circuit was found in an 80's Radio Electronics. The circuit makes use of general purpose transistors and the frequency ranges depend on the capacitors. For the indicated values we have from 15 Hz to 30 kHz.
| Clique na imagem para ampliar |
Emitter Coupled RC Oscillator (CB6350E)
- Details
- Written by: Newton C. Braga
