Divider by 2 with neon lamps (CB6822E)

Details
Written by: Newton C. Braga

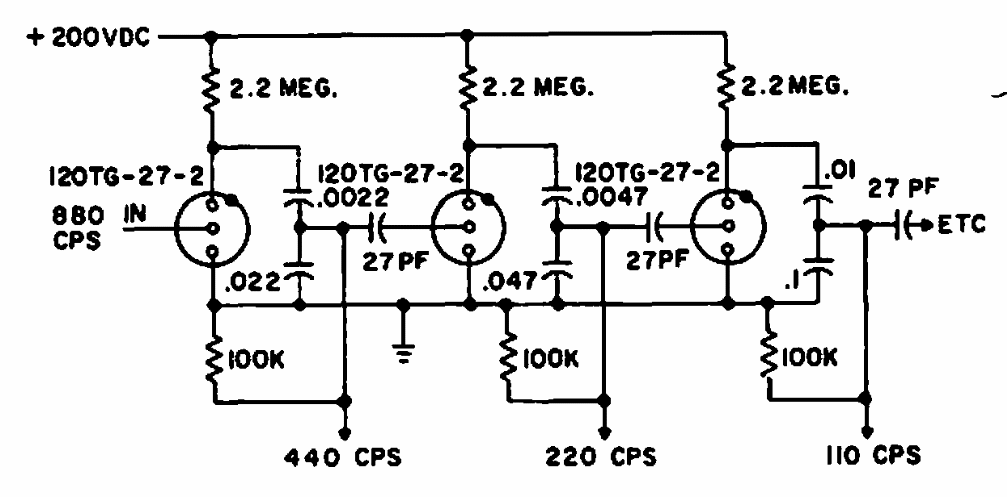

     This cascade circuit was obtained from old Signetics documentation. The circuit makes use of special neon lamps that act as valves. Observe the high supply voltage.
