Laser trigger (CB7225E)

Details
Written by: Newton C. Braga

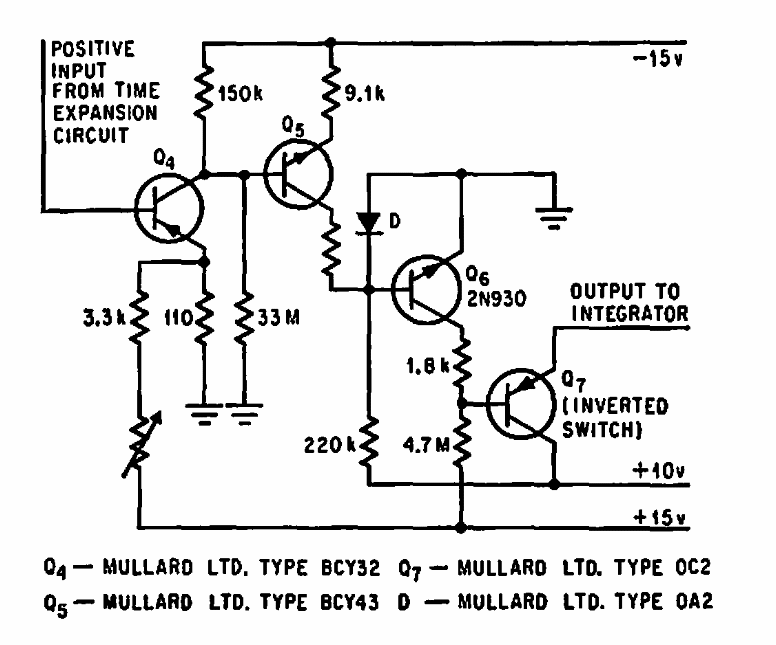

    Found in an American publication in 1967, this circuit generates pulses for the triggering of a LASER of the time. The circuit receives a signal in the form of a ramp producing a rectangular signal.
