Timed Alarm (CB6423E)

Details
Written by: Newton C. Braga

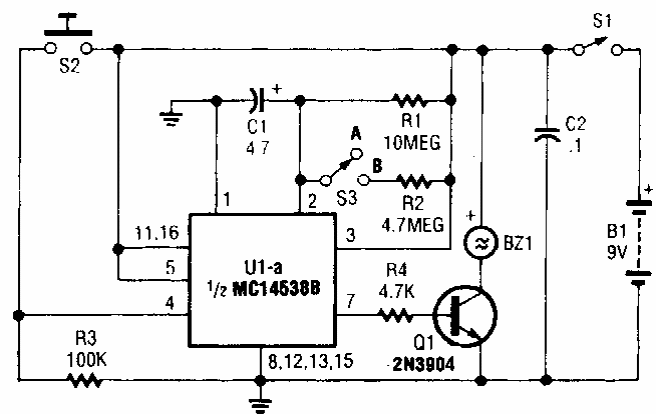

     We found this circuit in a 90's Popular Electronics. The circuit produces a loud sound if S2 is not pressed to reset.
