Rain Detector (CB6664E)

Details
Written by: Newton C. Braga

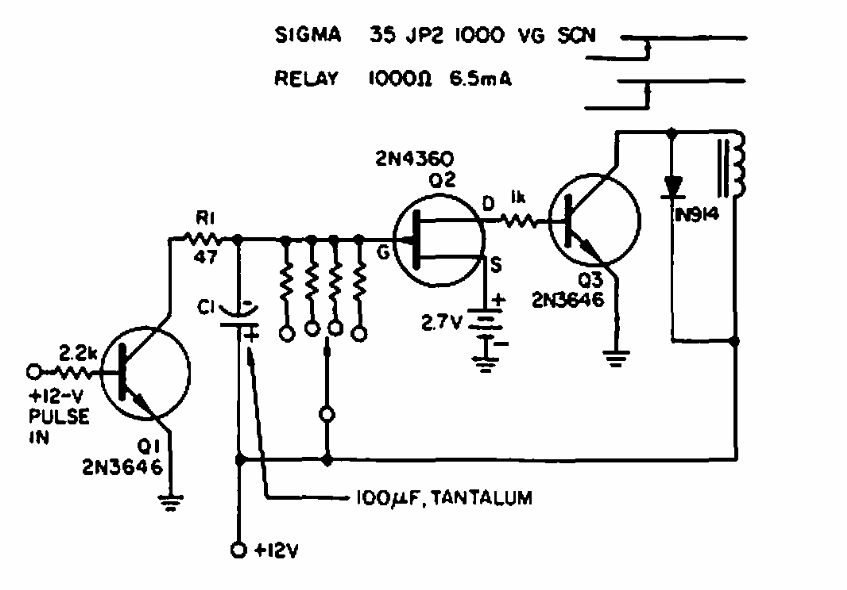

    Found in an Electronic Design and 1970s, this circuit uses transistors of the time. The transistors can be replaced with equivalents and the relay is 12 V depending on the power supply.
