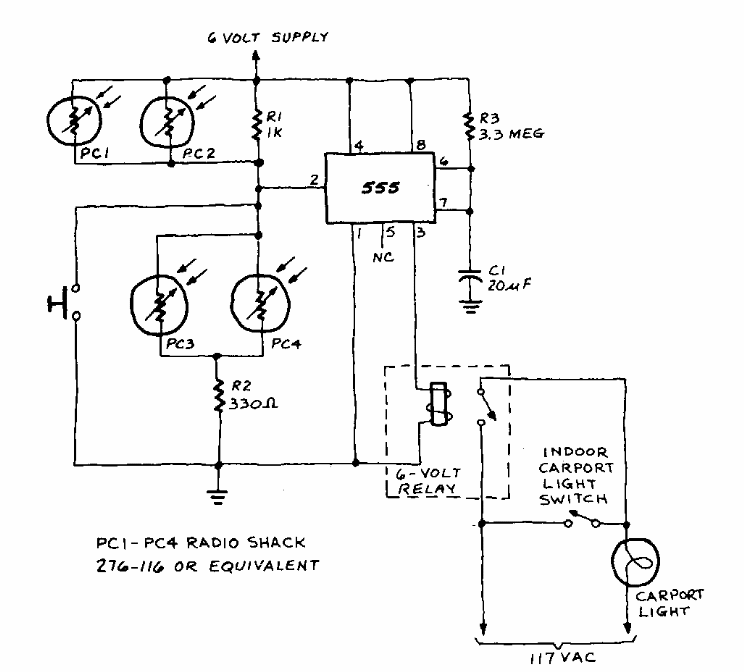

Automatic lamp control (CB6847E)

Found in Radio Electronics, this circuit is intended to activate the lighting system of garages driven by the car's headlight.

| Clique na imagem para ampliar |
