Emergency light (CB7196E)

Details
Written by: Newton C. Braga

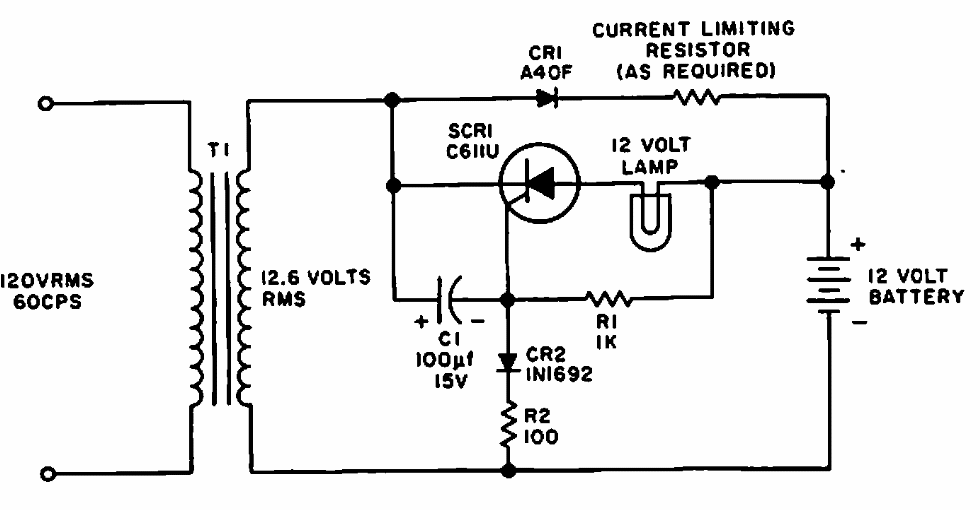

     This circuit that appears in other points of this section and on this website serves to activate a lamp in the event of a power failure. This version is from 1967 documentation by General Electric.
