Speed regulator for DC motors (CB7290E)

Details
Written by: Newton C. Braga



     Found in an Electronic Engineering from the 80's, this circuit makes use of components of the time. The circuit can be implemented with modern equivalent components.

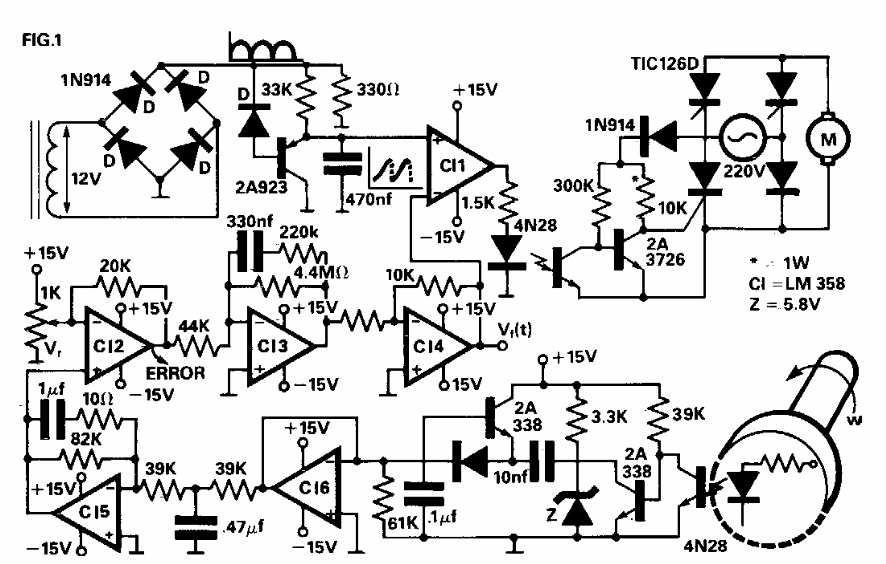

| Clique na imagem para ampliar |
