1-quadrant logarithmic converter (CB7333E)

Details
Written by: Newton C. Braga

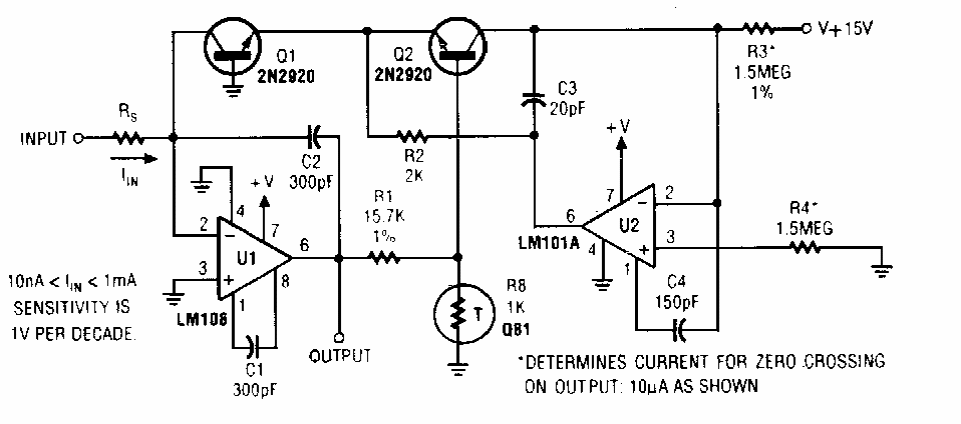

    This temperature compensated circuit was found in a Popular Electronics from the 90s. Integrated circuits and transistors are from that time.
