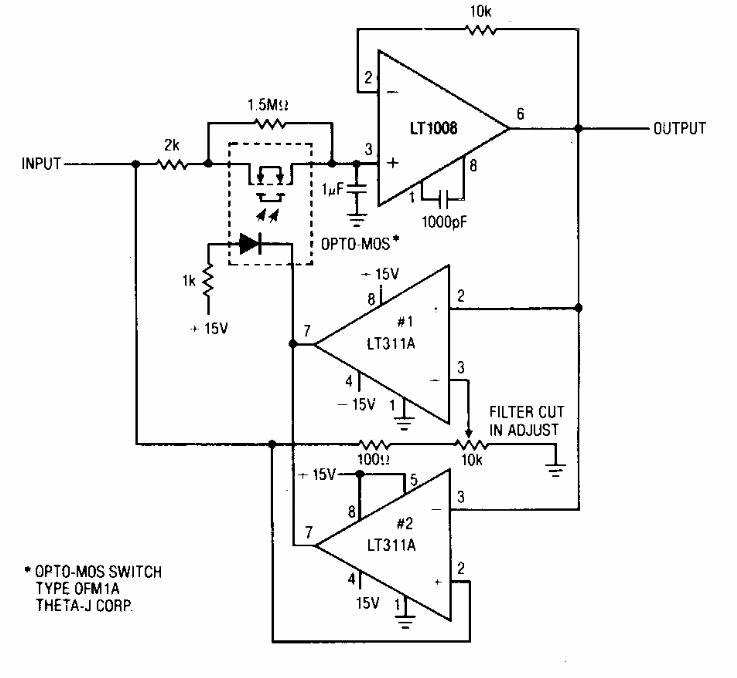

We found this circuit in a 1980s Linear Technology documentation. The components are from the time, but the configuration holds true for modern equivalent operational amplifiers. The power supply must be symmetrical.
| Clique na imagem para ampliar |
