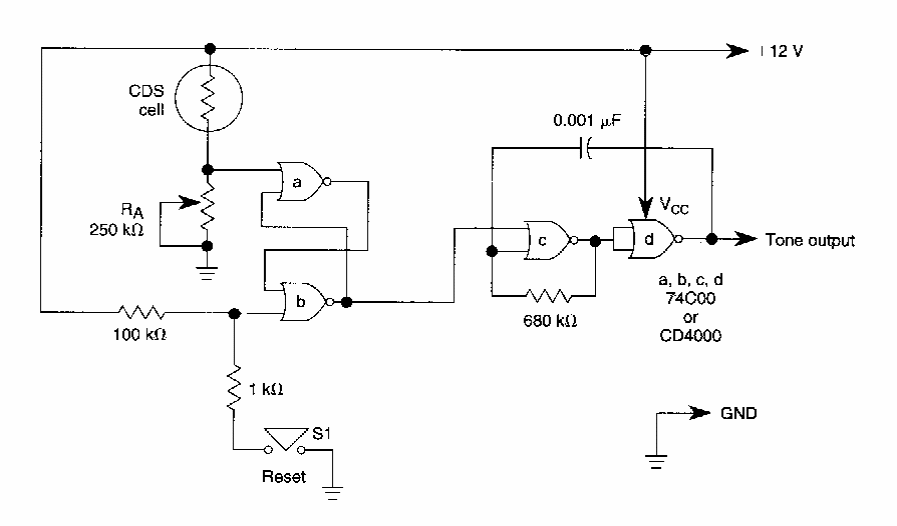

We found this circuit in an American documentation from the 90s. The circuit produces a 1 kHz signal with the sensor actuation. The circuit can operate with light or shadow depending on sensor position and RA.
| Clique na imagem para ampliar |
Light Alarm with Tone Output (CB6440E)
- Details
- Written by: Newton C. Braga
