Control for miniature railways (CB7079E)

Details
Written by: Newton C. Braga

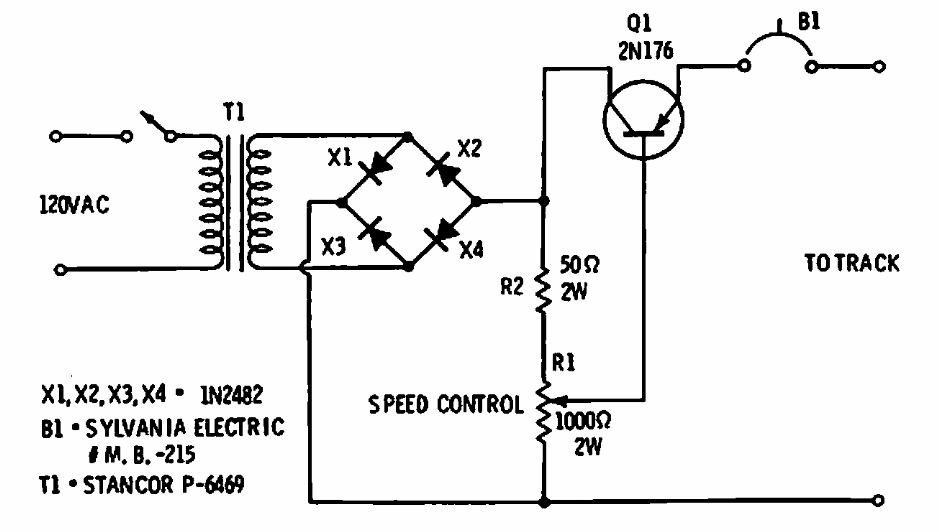

     Found in an American publication from 1968, this circuit can be made based on a TIP42 that must be mounted on a heat sink. The transformer is 25 V with a current of 3 to 4 A.
