Alternator regulator (CB7121E)

Details
Written by: Newton C. Braga

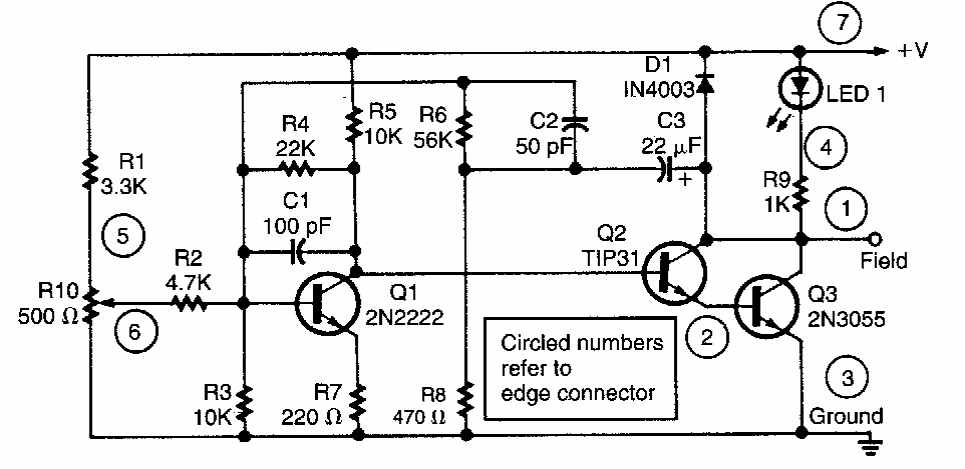

     This circuit was found in Radio Electronics from the 90s. Q3 must have a heatsink and R10 fixes the output voltage.




| Clique na imagem para ampliar |
