Audio Alarm (CB6422E)

Details
Written by: Newton C. Braga

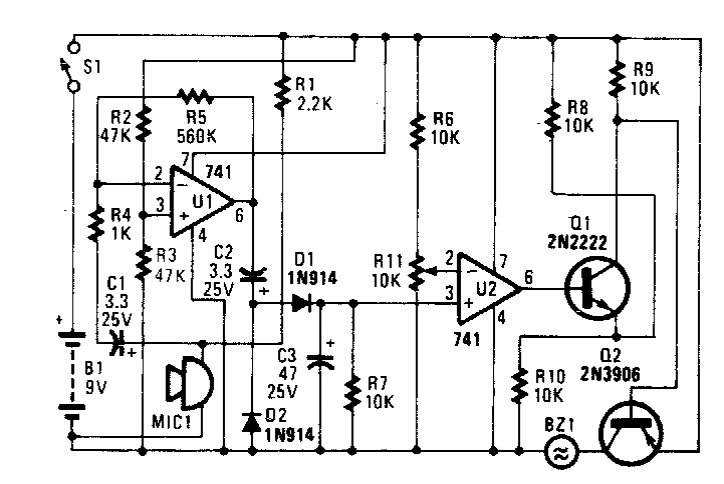

     Found on 90's Popular Electronics, this circuit triggers when the microphone picks up a sound. The circuit is powered by 9 V but will also work at 12 V by triggering a relay instead of the buzzer.
