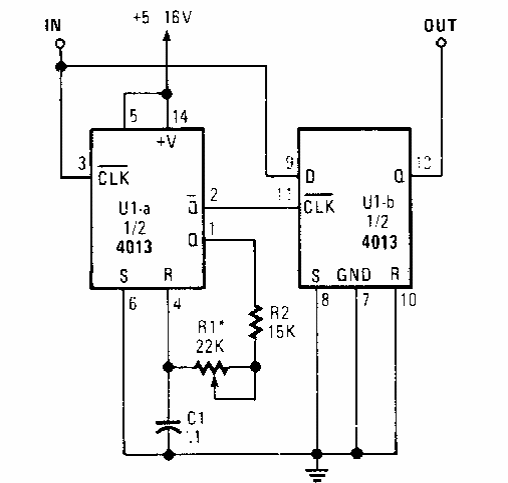

This circuit was obtained from a Popular Electronics of the 80's. It is set to a certain pulse detecting when its duration is shorter than expected. The maximum frequency is a few megahertz.
Active Cycle Detector (CB6529E)
- Details
- Written by: Newton C. Braga
