Signal Detector (CB6663E)

Details
Written by: Newton C. Braga

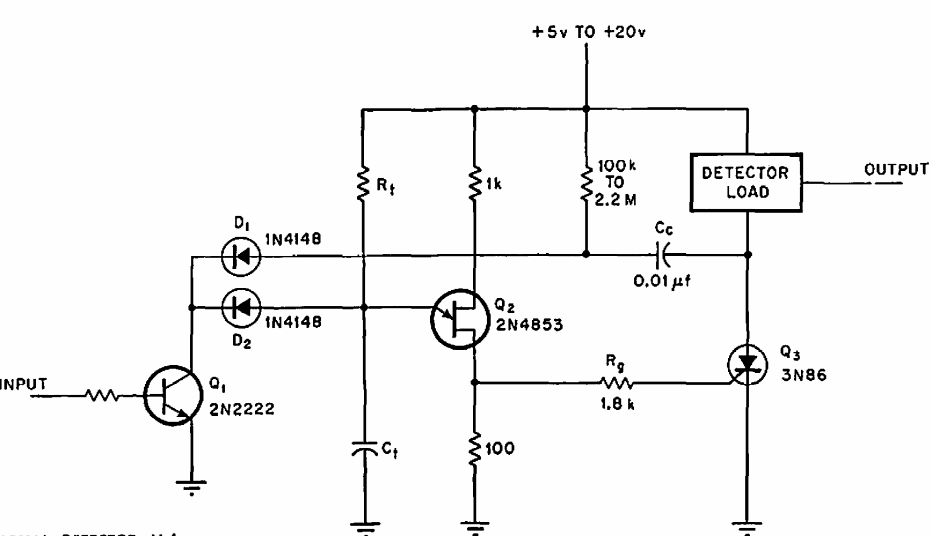

     This 1970 circuit triggers a load when it receives a signal. Components are common and SCR admits equivalent to load.
