Power grid powered metronome (CB7289E)

Details
Written by: Newton C. Braga

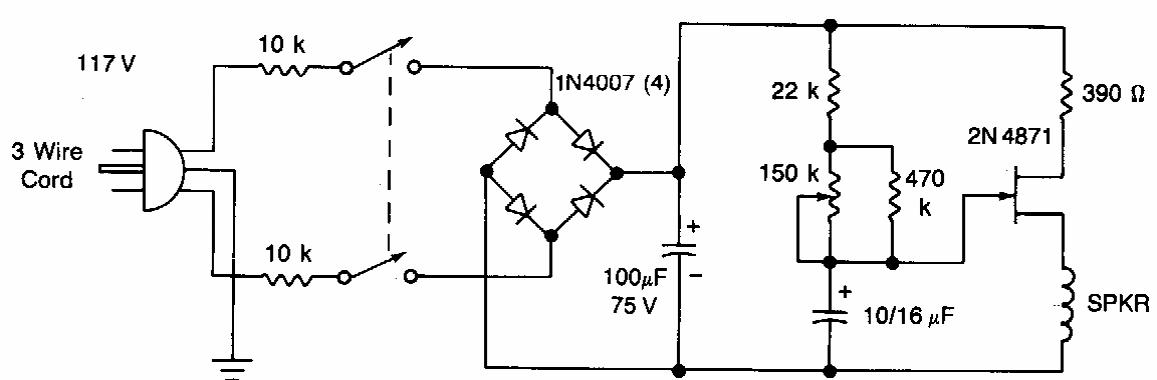

    This circuit from an old documentation includes the power supply for the 117 V power grid. It can be adapted to other networks by changing the 10k resistors.
