This low-pass filter was found in Intersil documentation from the 1980s. The circuit makes use of current operational, but the setting applies to other operational. The font must be symmetrical.
| Clique na imagem para ampliar |

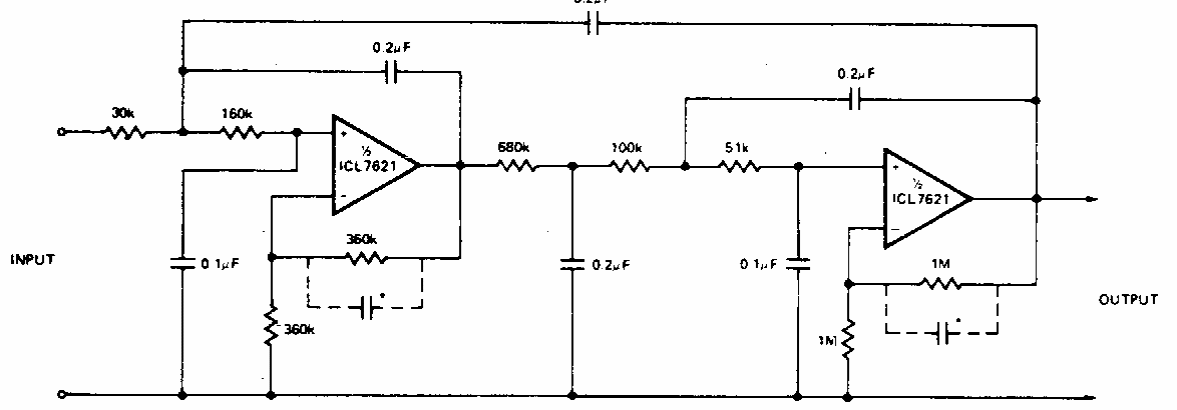

Fifth Order Chebyshev Filter (CB6242E)
- Details
- Written by: Newton C. Braga
