This circuit was found in an English publication from the 70's. The circuit requires symmetrical source and the transistor is a general purpose NPN. The capacitor determines the frequency generated.
| Clique na imagem para ampliar |

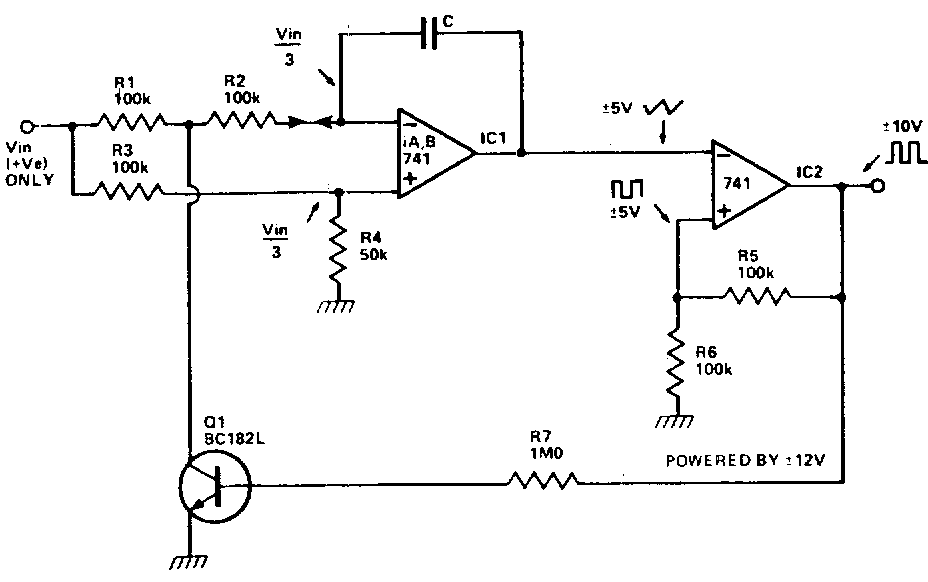

Triangular and linear square VCO (CB6348E)
