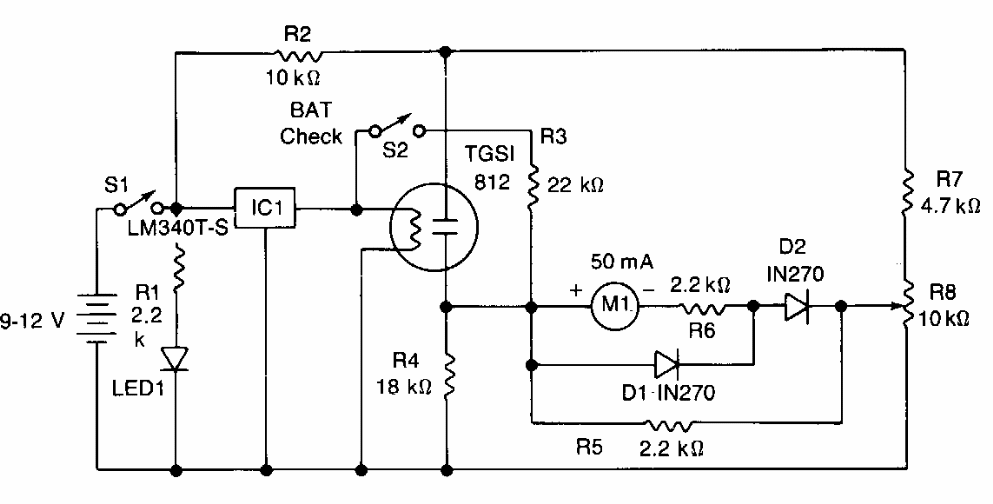

Found in an American 1980s documentation, this circuit makes use of a sensor of the era uncommon today. The regulator supplies the current required for sensor operation. The indicator is a possibly smaller 50 mA full-scale instrument with a change of R6.
