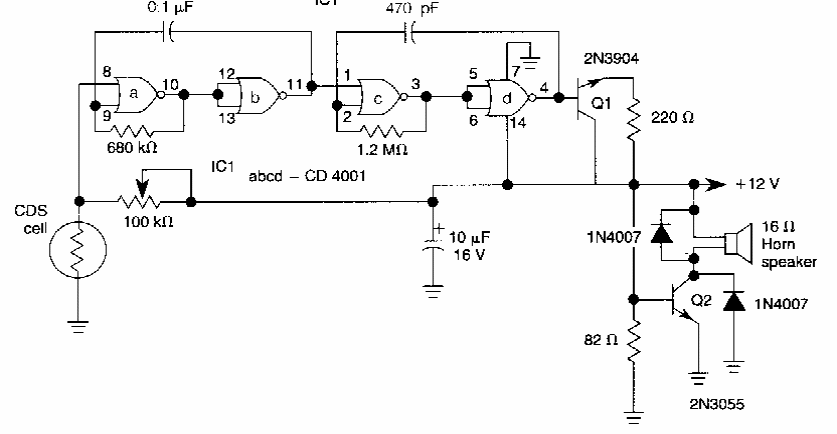

Pulsed Light Alarm (CB6439E)

This circuit provides a high intensity pulsating signal to a speaker. The circuit is from an American 90's documentation. The power supply is 12 V.
