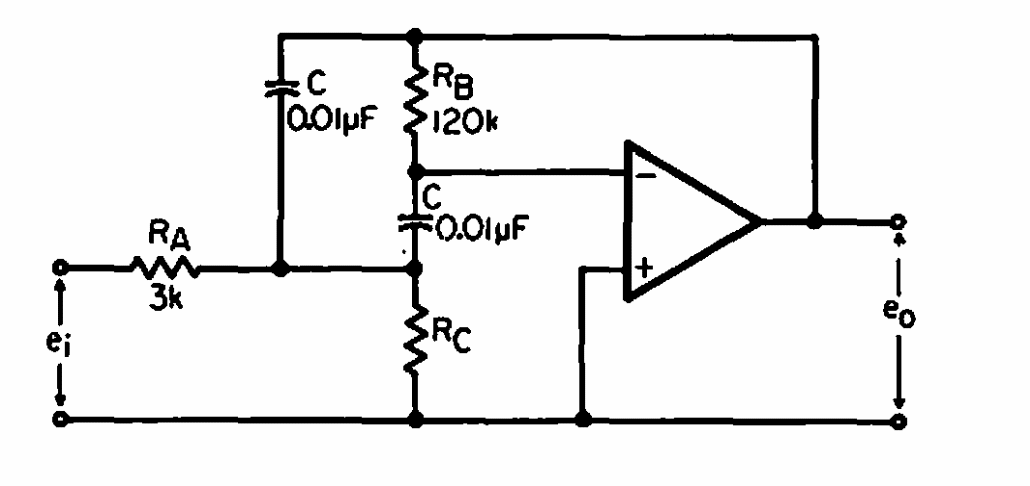

This setting that applies to any operational amplifier was found in an old documentation. For the indicated component values the frequency can be adjusted from 1.6 to 2.5 kHz with a 26dB gain and 260 Hz bandwidth.
| Clique na imagem para ampliar |
Adjustable Range Pass Filter (CB6730E)
- Details
- Written by: Newton C. Braga
