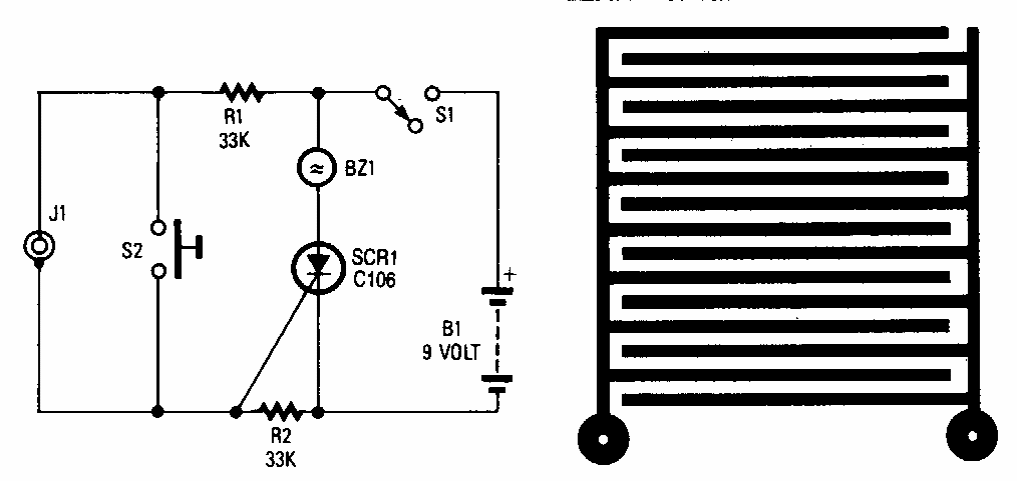

This circuit is from Popular Electronics. The buzzer is of the Sonalert type with built-in oscillator. The circuit must be powered by battery and S2 resets it. The sensor is a plate with the pattern shown in the figure.
