Noise Generator (CB7078E)

Details
Written by: Newton C. Braga

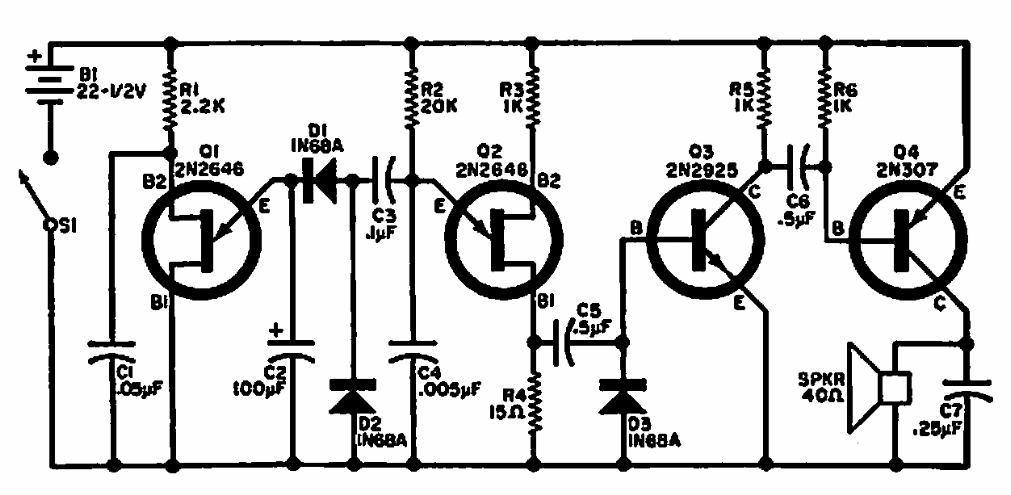

     Published in Popular Electronics with the curious name of Obnoxious Noisemaker, this 1968 circuit generates random sounds that are reproduced on a loudspeaker. The power transistor can be a BD136.
