Or exclusive with transistor (CB7249E)

Details
Written by: Newton C. Braga

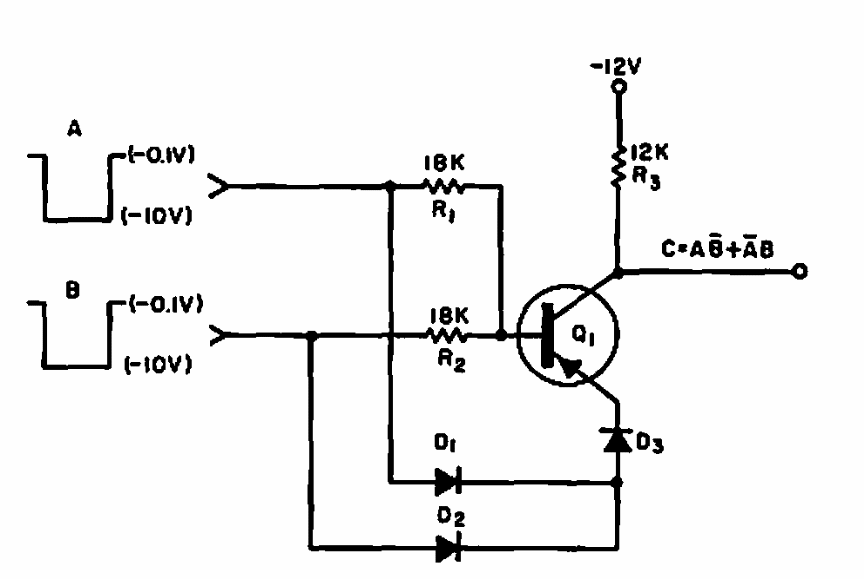

   In the figure we have the way to obtain the Exclusive-OR function with 1 transistor. The circuit is from a 1964 Electronic Design. The transistor can be any general purpose PNP.




| Clique na imagem para ampliar |
