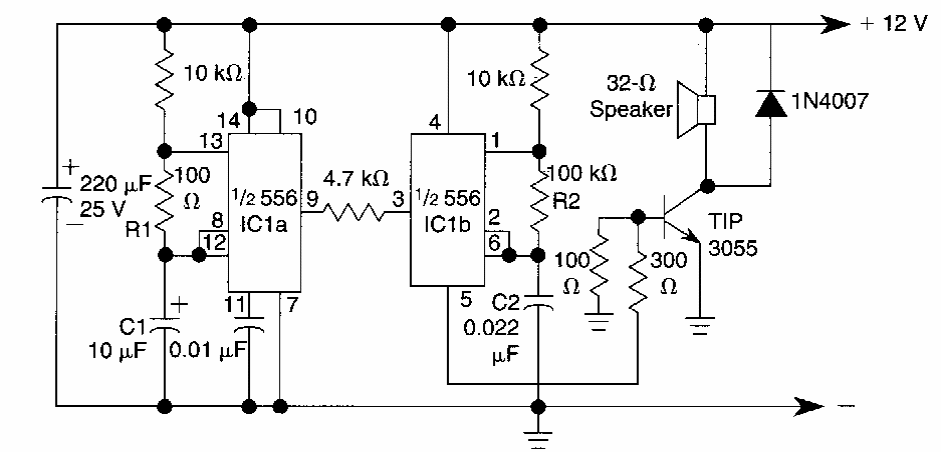

In the original publication of the 90s a 556 consisting of a double 555 is suggested. The circuit drives a speaker with good power. The power transistor shall be fitted with a heat sink.
| Clique na imagem para ampliar |
Modulated Siren 555 (CB6421E)
- Details
- Written by: Newton C. Braga
