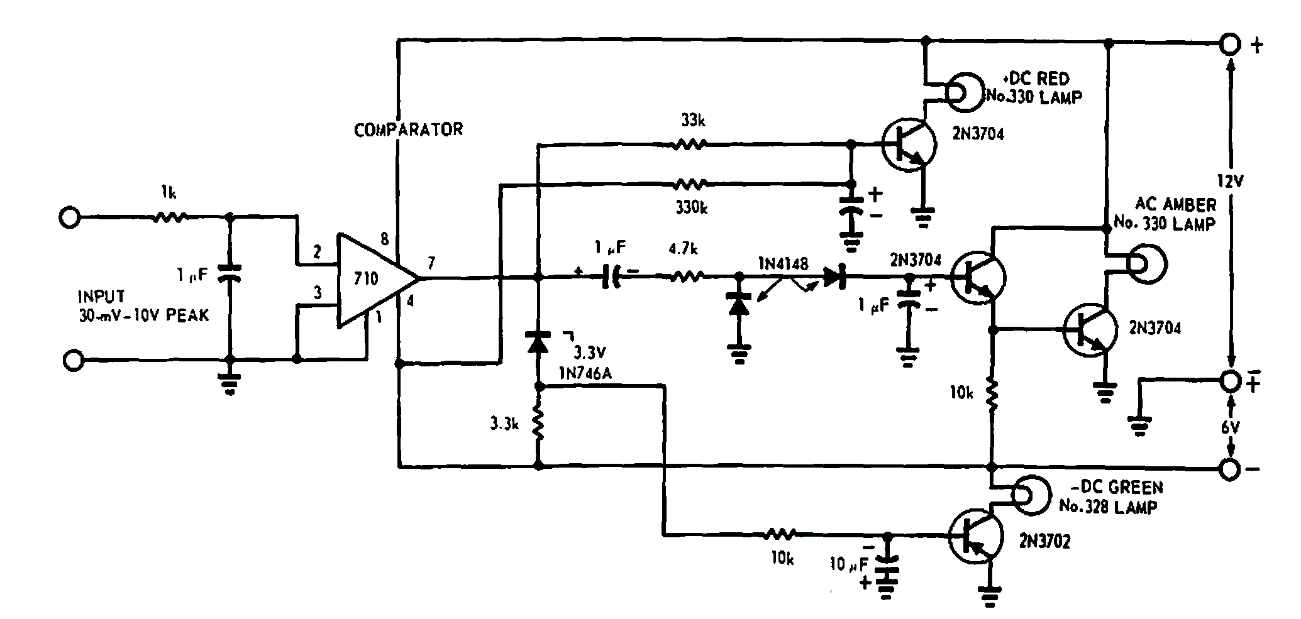

This circuit identifies the polarity of DC signals and if the signal is AC. The circuit is from 1969 US EDN documentation. Operational may be equivalent.
| Clique na imagem para ampliar |
Signal Identifier (CB6497E)
