30 mA Current Source (CB6633E)

Details
Written by: Newton C. Braga

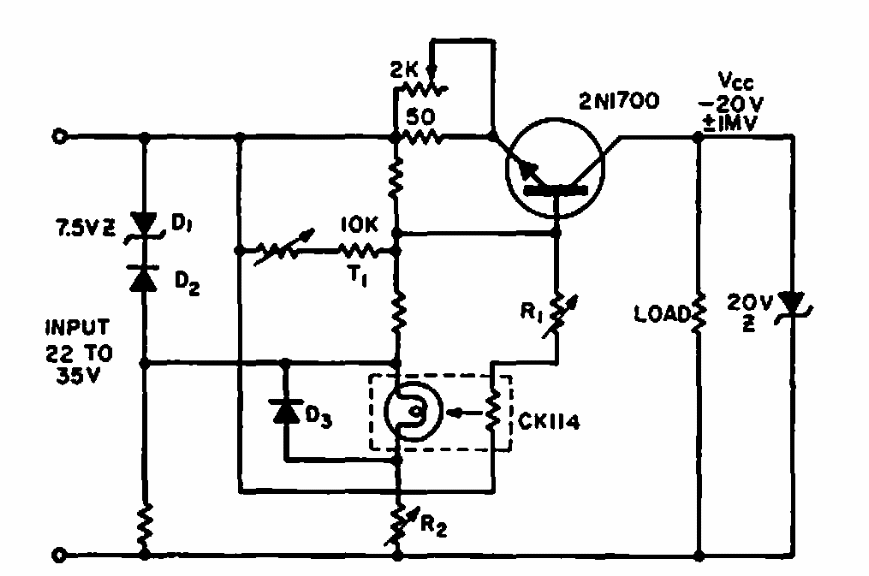

     This power supply uses a Raystor which is a 1964 LDR lamp coupler. The circuit was found in an Electronic Design and the transistor can be replaced with the current equivalent.




| Clique na imagem para ampliar |
