SCR Neon driver (CB6687E)
- Details
- Written by: Newton C. Braga

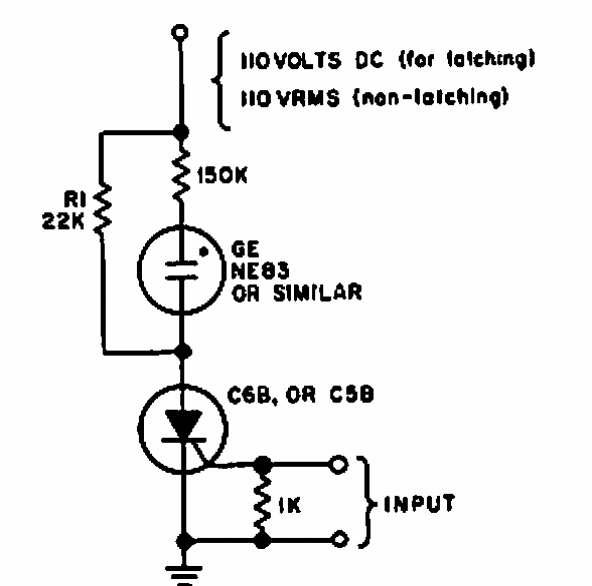

Suggested by General Electric in a 1967 publication, this circuit makes use of an SCR of the time. The supply voltage is 110 V. The resistor R1 is to ensure the SCR holding current.
