RRRRRTimed alarm for car (CB6776E)

Details
Written by: Newton C. Braga

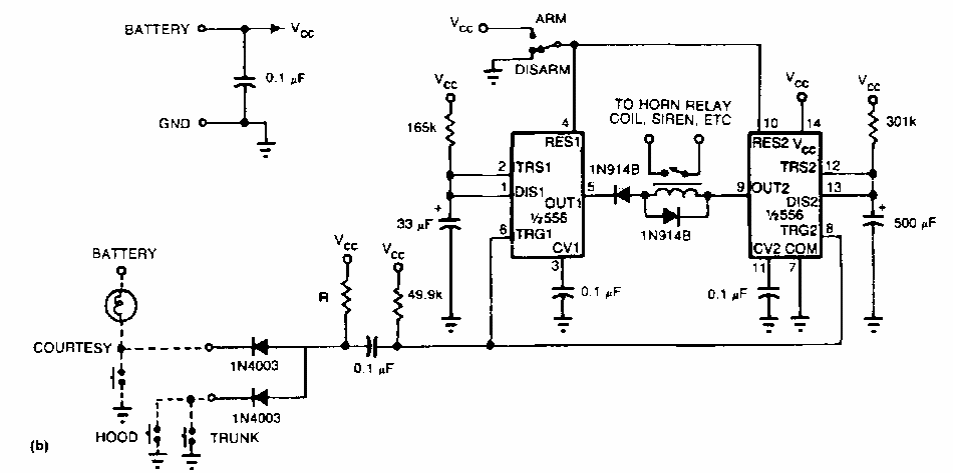

     This circuit was found in an EDN from the 90s. The circuit employs a double 555 and uses the courtesy light switches of the car as sensors.
