Xenon Flasher (CB6941E)

Details
Written by: Newton C. Braga

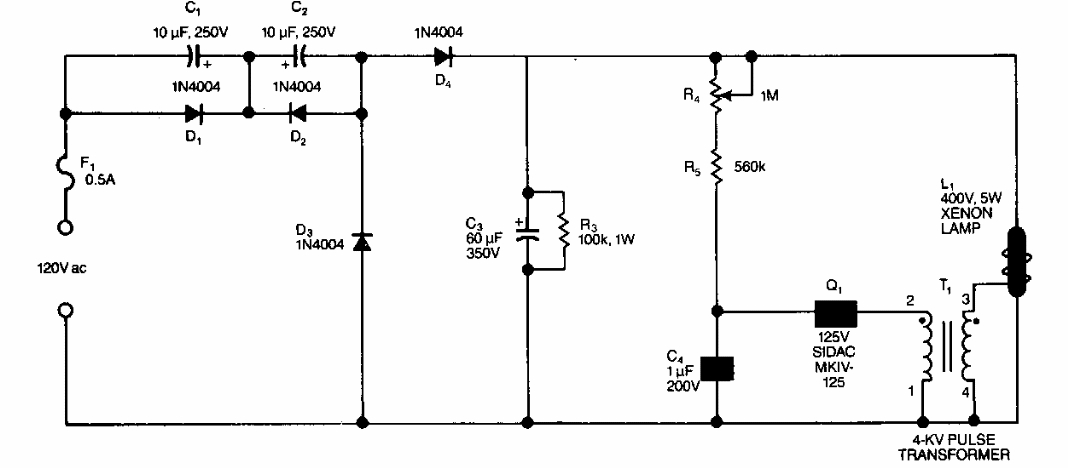

     This xenon flasher version for the power grid is from an 80's EDN. The circuit uses a folder and a pulse transformer to trigger the lamp. C1 determines the intensity of the pulses.
