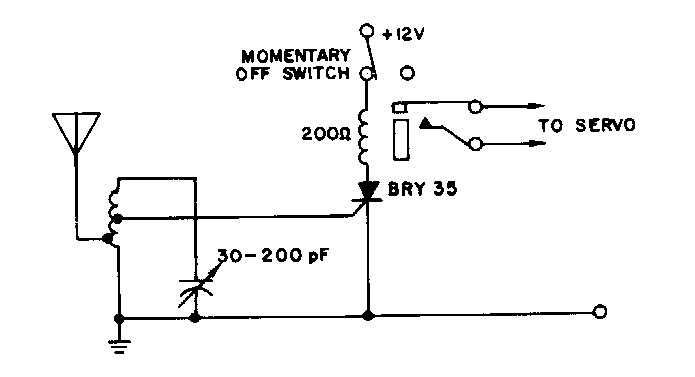

Very simple, this radio control circuit for short distances was found in an Electronic Design from the 80's. The SCR is the critical element of this circuit, since it is an old type that fires with only 30 uA.
| Clique na imagem para ampliar |
Cheap radio control (CB7172E)
- Details
- Written by: Newton C. Braga
