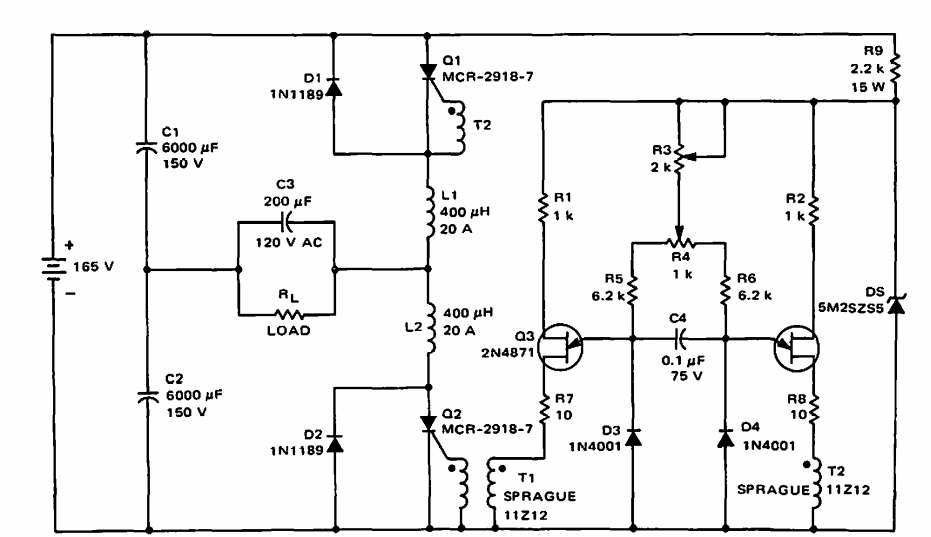

Found in Motorola's 1968 power circuit manual, this circuit has a high input voltage and no information was given about the transformers as the original types are commercial at the time.
| Clique na imagem para ampliar |
800 W x 120 V inverter (CB7180E)
- Details
- Written by: Newton C. Braga
