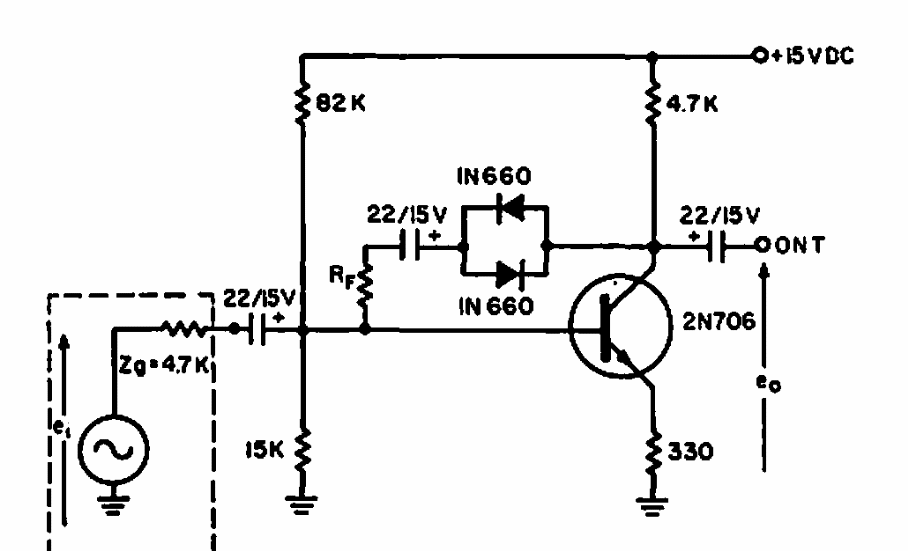

This nonlinear gain circuit was found in a 1965 Electronic Design. The configuration can be used as a basis for modern designs with equivalent transistors.
| Clique na imagem para ampliar |
Nonlinear Gain Amplifier (CB6130E)
- Details
- Written by: Newton C. Braga
