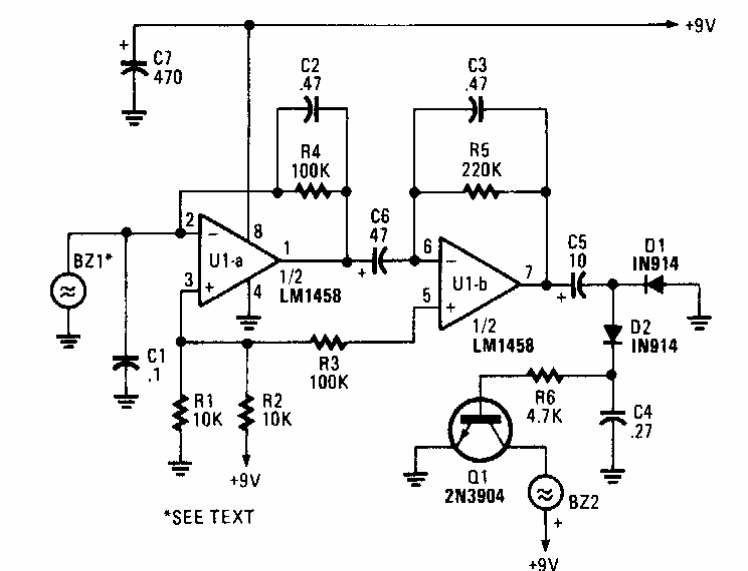

Found on Popular Electronics in the 1980s, this circuit detects a change in air pressure using a piezoelectric buzzer-free crystal as a sensor. The components used are common. The suggested operational is a double 741 of the time.
| Clique na imagem para ampliar |
