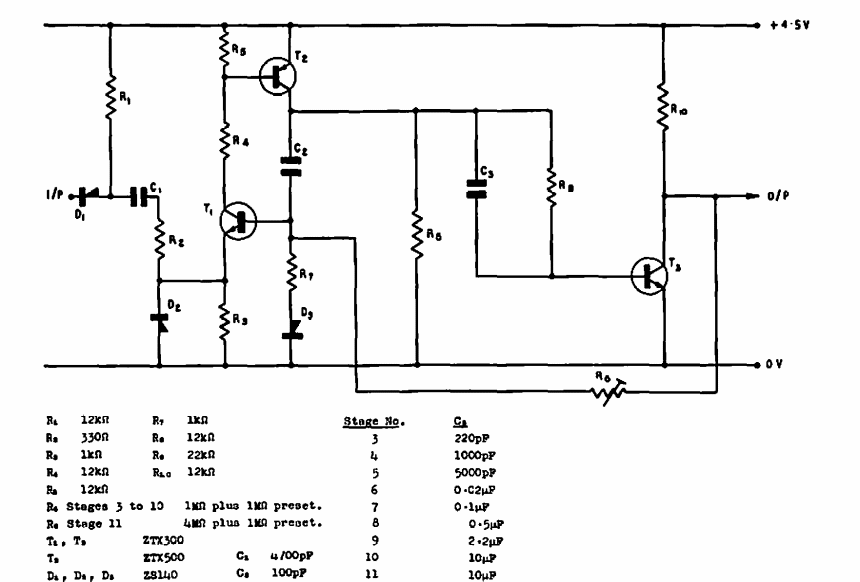

We found this circuit in documentation from Ferranti from 1968. The circuit uses transistors from that time. These transistors can be replaced by modern equivalents. The circuit divides the input frequency by several values.
