LED control (CB7194E)

Details
Written by: Newton C. Braga

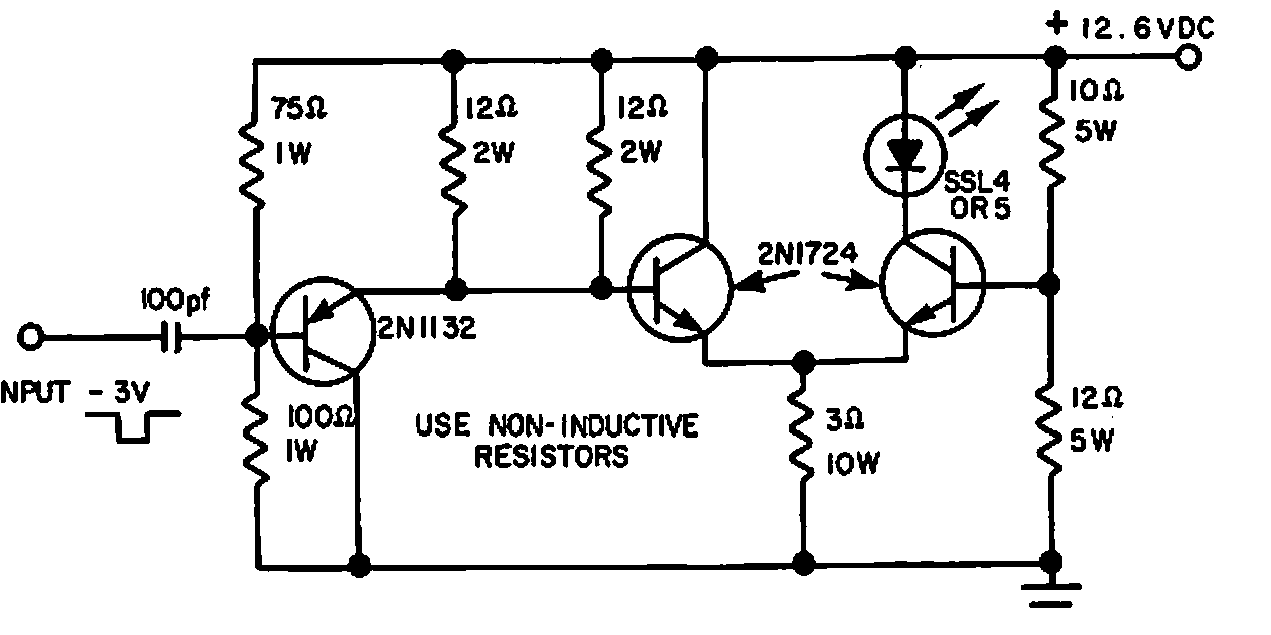

    This circuit for controlling high power LEDs (up to 2A) is from a General Electric documentation from 1970. The circuit serves to modulate a transmitter in PWM. The circuit serves as a shield.
