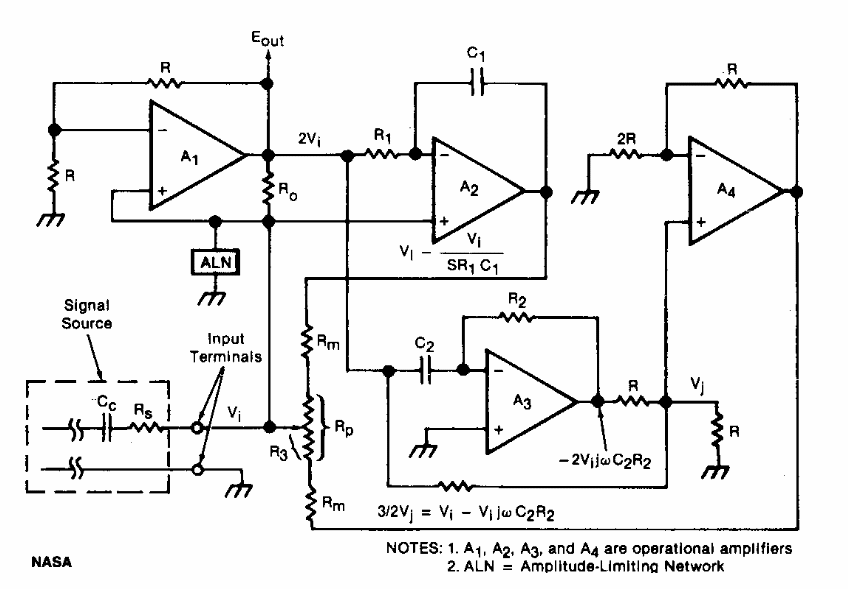

This circuit was found in a NASA documentation from the 1980s. Component values are application dependent. In it we have the implementation of a broadband circuit to generate or amplify signals.
| Clique na imagem para ampliar |
Wideband Oscillator or Amplifier (CB6347E)
- Details
- Written by: Newton C. Braga
