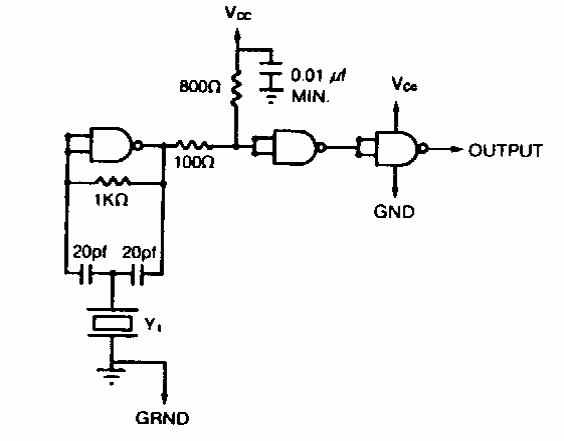

Found in an American 1980s documentation, this circuit generates frequencies in the range indicated depending on the crystal used. The output is TTL and can be used as a shield.
1 to 20 MHz TTL Oscillator (CB6514E)
