600 W Power Control (CB6568E)

Details
Written by: Newton C. Braga

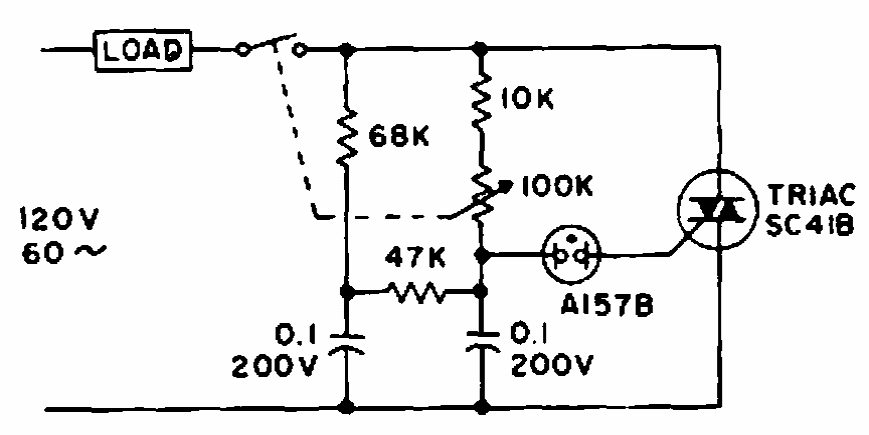

     This circuit was obtained in old documentation, but it is valid for modern triacs that must be equipped with heat sink. The trigger element is an ordinary neon lamp.
