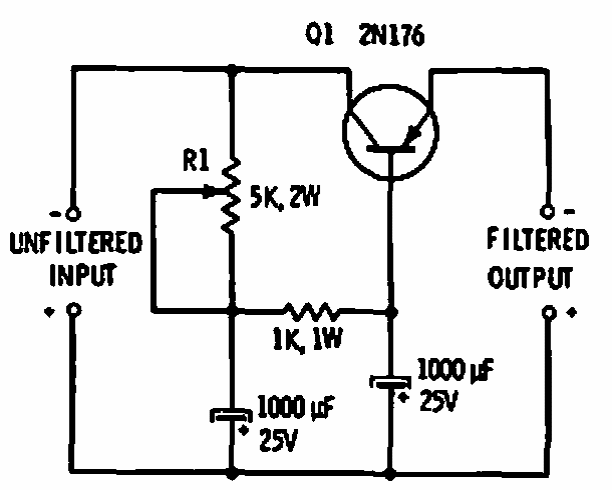

Found in a 1968 US publication, it is a font filter. The transistor is according to the desired current. Values are for 25 V output at 0.5 A.
Electronic Filter (CB6729E)
- Details
- Written by: Newton C. Braga
Found in a 1968 US publication, it is a font filter. The transistor is according to the desired current. Values are for 25 V output at 0.5 A.
