Projector lamp regulator (CB6845E)

Details
Written by: Newton C. Braga

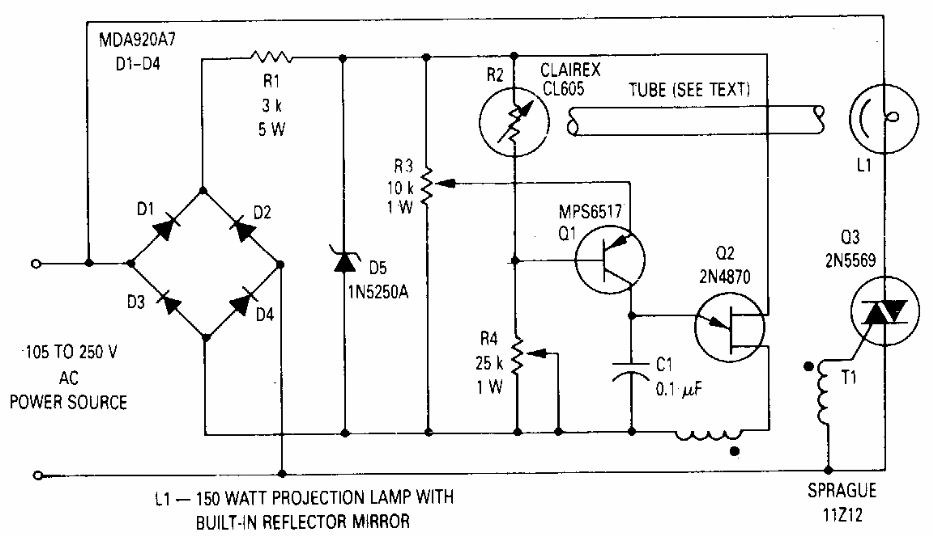

     This 1980s circuit was found in Motorola documentation. The circuit uses period components that admit of equivalents. Light feedback in a modern version can be done by optical fiber.
