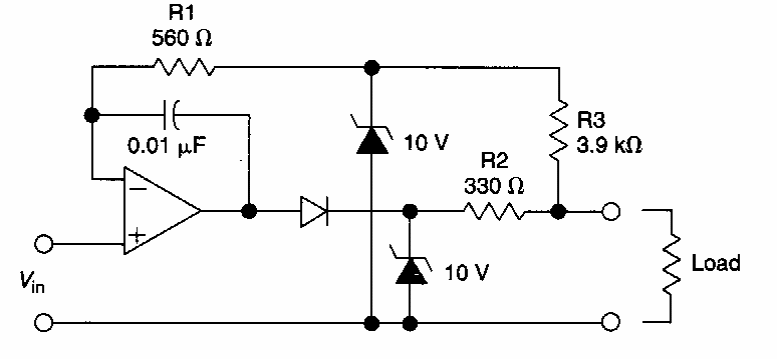

This circuit protects an operational amplifier with respect to both current and voltage. The circuit is from American documentation and can be applied to almost any operational.
| Clique na imagem para ampliar |
Protection for operational amplifier (CB6976E)
