Found in an Electronics World of 1968 this circuit has a 40 to 12 000 Hz bandwidth providing a 1.9 Vpp output. The transistor used is of the time. The circuit is suitable for turntables with capacitive pickups.
| Clique na imagem para ampliar |

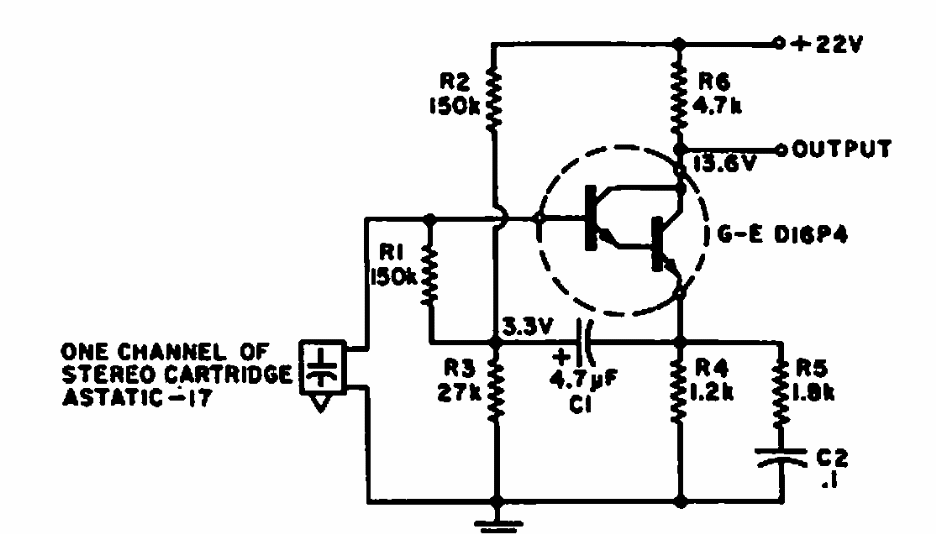

Darlington Amplifier (CB6291E)
- Details
- Written by: Newton C. Braga
