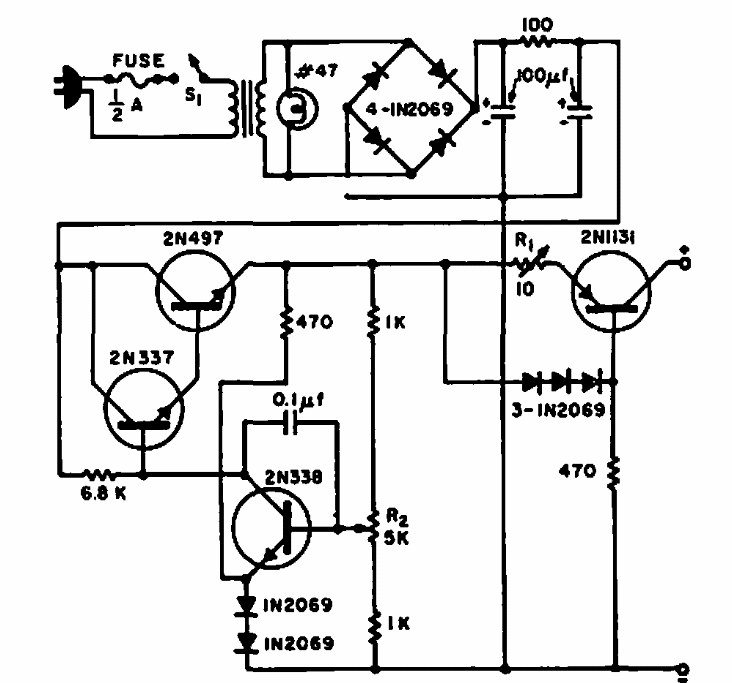

This circuit was found in a European documentation from 1964. The circuit makes use of components of the time such as a 6 V transformer with a current of the order of 250 mA. The circuit is set to a 150 mA load current.
