25 dB Gain Converter (CB6596E)

Details
Written by: Newton C. Braga

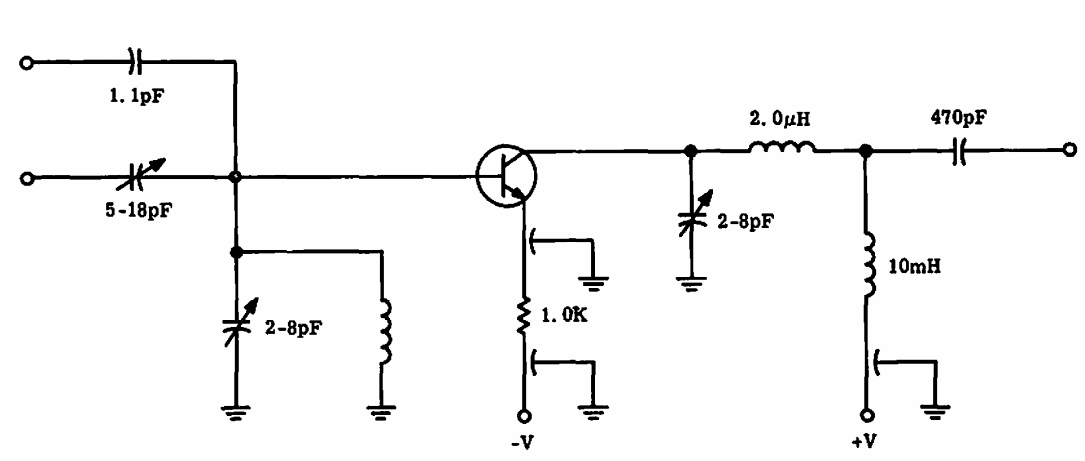

    This 1967 Motorola circuit is intended for operation with signals up to 250 MHz delivering a 50 MHz signal at the output. The transistor is the MM1941, uncommon today.
