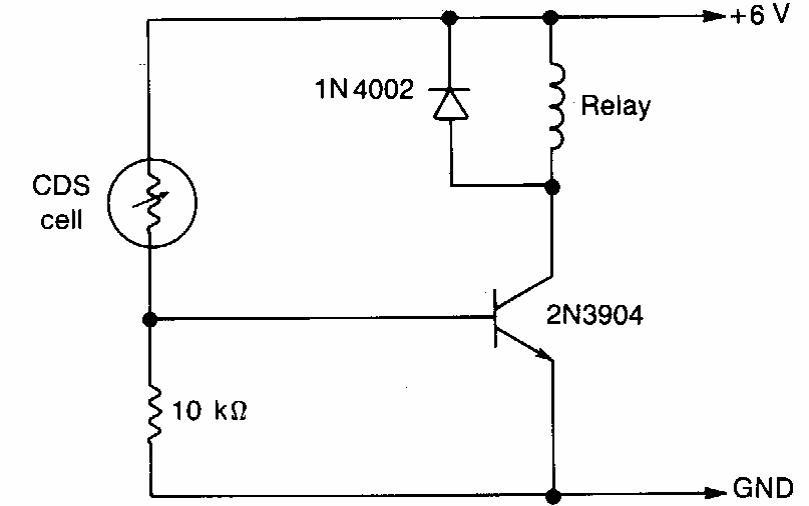

This light-activated switch triggers a 6 V relay. The circuit can operate with 12 V and relays for this voltage. There is no sensitivity control, but it can be added by replacing the resistor with a potentiometer of the same value.




| Clique na imagem para ampliar |
